Build an Adversarial Game Playing Agent

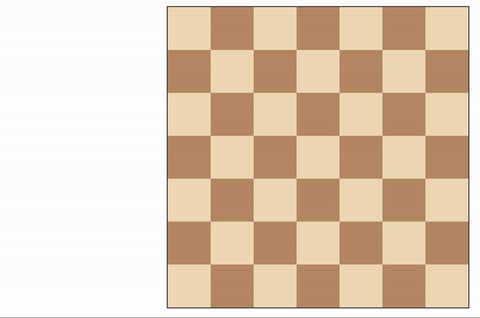

Example game of isolation on a square board

Synopsis

In this project, you will experiment with adversarial search techniques by building an agent to play knights Isolation. Unlike the examples in lecture where the players control tokens that move like chess queens, this version of Isolation gives each agent control over a single token that moves in L-shaped movements--like a knight in chess.

Isolation

In the game Isolation, two players each control their own single token and alternate taking turns moving the token from one cell to another on a rectangular grid. Whenever a token occupies a cell, that cell becomes blocked for the remainder of the game. An open cell available for a token to move into is called a "liberty". The first player with no remaining liberties for their token loses the game, and their opponent is declared the winner.

In knights Isolation, tokens can move to any open cell that is 2-rows and 1-column or 2-columns and 1-row away from their current position on the board. On a blank board, this means that tokens have at most eight liberties surrounding their current location. Token movement is blocked at the edges of the board (the board does not wrap around the edges), however, tokens can "jump" blocked or occupied spaces (just like a knight in chess).

Finally, agents have a fixed time limit (150 milliseconds by default) to search for the best move and respond. The search will be automatically cut off after the time limit expires, and the active agent will forfeit the game if it has not chosen a move.

You can find more information (including implementation details) about the in the Isolation library readme here.

Getting Started (Workspaces)

The easiest way to complete the project is to use the Udacity Workspace in your classroom. The environment has already been configured with the required files and libraries to support the project. If you decide to use the Workspace, then you do NOT need to perform any of the setup steps for this project. Skip to the section with instructions for completing the project.

Getting Started (Local Environment)

If you would prefer to complete the exercise in your own local environment, then follow the steps below:

$ source activate aind

(aind) $ git clone https://github.com/udacity/artificial-intelligence
(aind) $ cd "artificial-intelligence/Projects/3_Game Playing"

Instructions

You must implement an agent in the CustomPlayer class defined in the game_agent.py file. The interface definition for game agents only requires you to implement the .get_action() method, but you can add any other methods to the class that you deem necessary. You can build a basic agent by combining minimax search with alpha-beta pruning and iterative deepening from lecture.

NOTE: Your agent will not be evaluated in an environment suitable for running machine learning or deep learning agents (like AlphaGo); visit an office hours sessions after completing the project if you would like guidance on incorporating machine learning in your agent.

The get_action() Method

This function is called once per turn for each player. The calling function handles the time limit and

def get_action(self, state):
    import random
    self.queue.put(random.choice(state.actions()))

Initialization Data

Your agent will automatically read the contents of a file named data.pickle if it exists in the same folder as my_custom_player.py. The serialized object from the pickle file will be assigned to self.data. Your agent should not write to or modify the contents of the pickle file during search.

The log file will record a warning message if there is no data file, however a data file is NOT required unless you need it for your opening book. (You are allowed to use the data file to provide any initialization information to your agent; it is not limited to an opening book.)

Saving Information Between Turns

The CustomPlayer class can pass internal state by assigning the data to the attribute self.context. An instance of your agent class will carry the context between each turn of a single game, but the contents will be reset at the start of any new game.

def get_action(...):
    action = self.mcts()
    self.queue.put(action)
    self.context = object_you_want_to_save  # self.context will contain this object on the next turn

Choose an Experiment

Select at least one of the following to implement and evaluate in your report. (There is no upper limit on the techniques you incorporate into your agent.)

Option 1: Develop a custom heuristic (must not be one of the heuristics from lectures, and cannot only be a combination of the number of liberties available to each agent)

Hints:

Option 2: Develop an opening book (must span at least depth 4 of the search tree)

Hints:

Adding a basic opening book

For example, the contents of dictionary my_data can be saved to disk:

import pickle
from isolation import Isolation
state = Isolation()
my_data = {state: 57}  # opening book always chooses the middle square on an open board
with open("data.pickle", 'wb') as f:
    pickle.dump(my_data, f)

Option 3: Build an agent using advanced search techniques (for example: killer heuristic, principle variation search (not in lecture), or monte carlo tree search (not in lecture))

Hints:

Note:

Report Requirements

Your report must include a table or chart with data from an experiment to evaluate the performance of your agent as described above. Use the data from your experiment to answer the relevant questions below. (You may choose one set of questions if your agent incorporates multiple techniques.)

Advanced Heuristic

Opening book

Advanced Search Techniques

Evaluation

Your project will be reviewed by a Udacity reviewer against the project rubric here. Review this rubric thoroughly, and self-evaluate your project before submission. All criteria found in the rubric must meet specifications for you to pass.

Submission

Before you can submit your project for review in the classroom, you must run the remote test suite & generate a zip archive of the required project files. Submit the archive in your classroom for review. (See notes on submissions below for more details.) From your terminal, run the command: (make sure to activate the aind conda environment if you're running the project in your local environment; workspace users do not need to activate an environment.)

$ udacity submit

The script will automatically create a zip archive of the required files (my_custom_player.py and report.pdf are required; data.pickle will be included if it exists) and submit your code to a remote server for testing. You can only submit a zip archive created by the PA script (even if you're only submitting a partial solution), and you must submit the exact zip file created by the Project Assistant in your classroom for review. The classroom verifies the zip file submitted against records on the Project Assistant system; any changes in the file will cause your submission to be rejected.

NOTE: Students who authenticate with Facebook or Google accounts must follow the instructions on the FAQ page here to obtain an authentication token. (The Workspace already includes instructions for obtaining and configuring your token.)
