Introduction

Building a robot used to be a long and cumbersome process. Essentially all of the components had to be built from scratch.

Robot Operating System, or “ROS”, which is a software framework that greatly simplifies robot development.

Components and Features

ROS is an open-source software framework for robotics development. It is not an operating system in the typical sense. But like an OS, it provides a means of communicating with hardware. It also provides a way for different processes to communicate with one another via message passing. Lastly, ROS features a slick build and package management system called catkin, allowing you to develop and deploy software with ease. ROS also has tools for visualization, simulation, and analysis, as well as extensive community support and interfaces to numerous powerful software libraries.

Summary of ROS components and features:

Also, check out this short documentary on ROS.

Nodes and topics

Pretty much any generic robot performs these three high level steps:

ROS provides a powerful communication system allowing these components to communicate with each other.

ROS breaks these steps into nodes. Each node is responsible for a portion of the system functionality. For example, there may be one node for each sensor and actuator in the system.

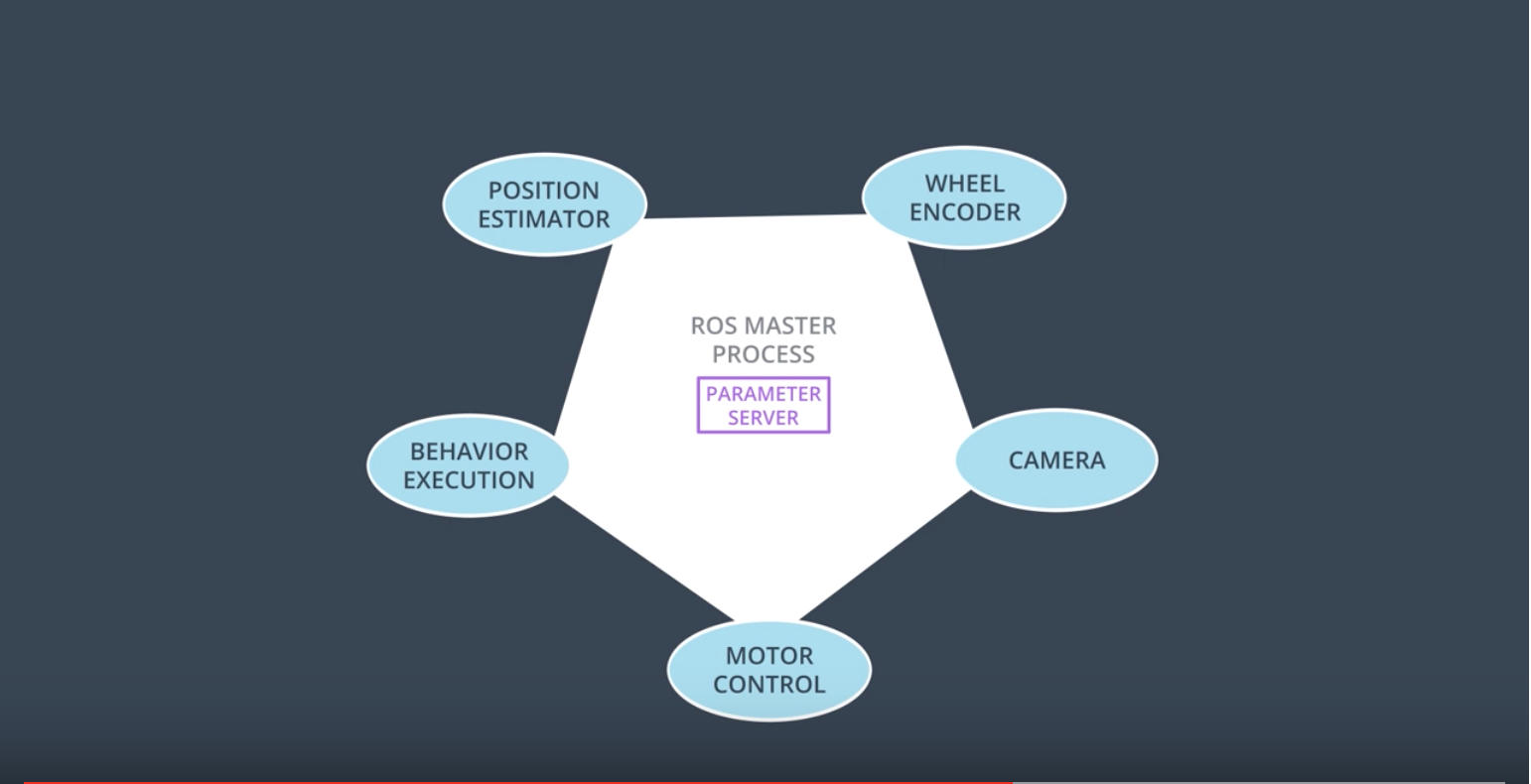

ROS master process connects all the nodes to each other and allow them to share data and communicate between each other. It also functions as parameter server so that all the nodes store their data into it, making it available for all others nodes to use it. So rather than storing the same information over multiple places, nodes can look up the values as needed.

drawing

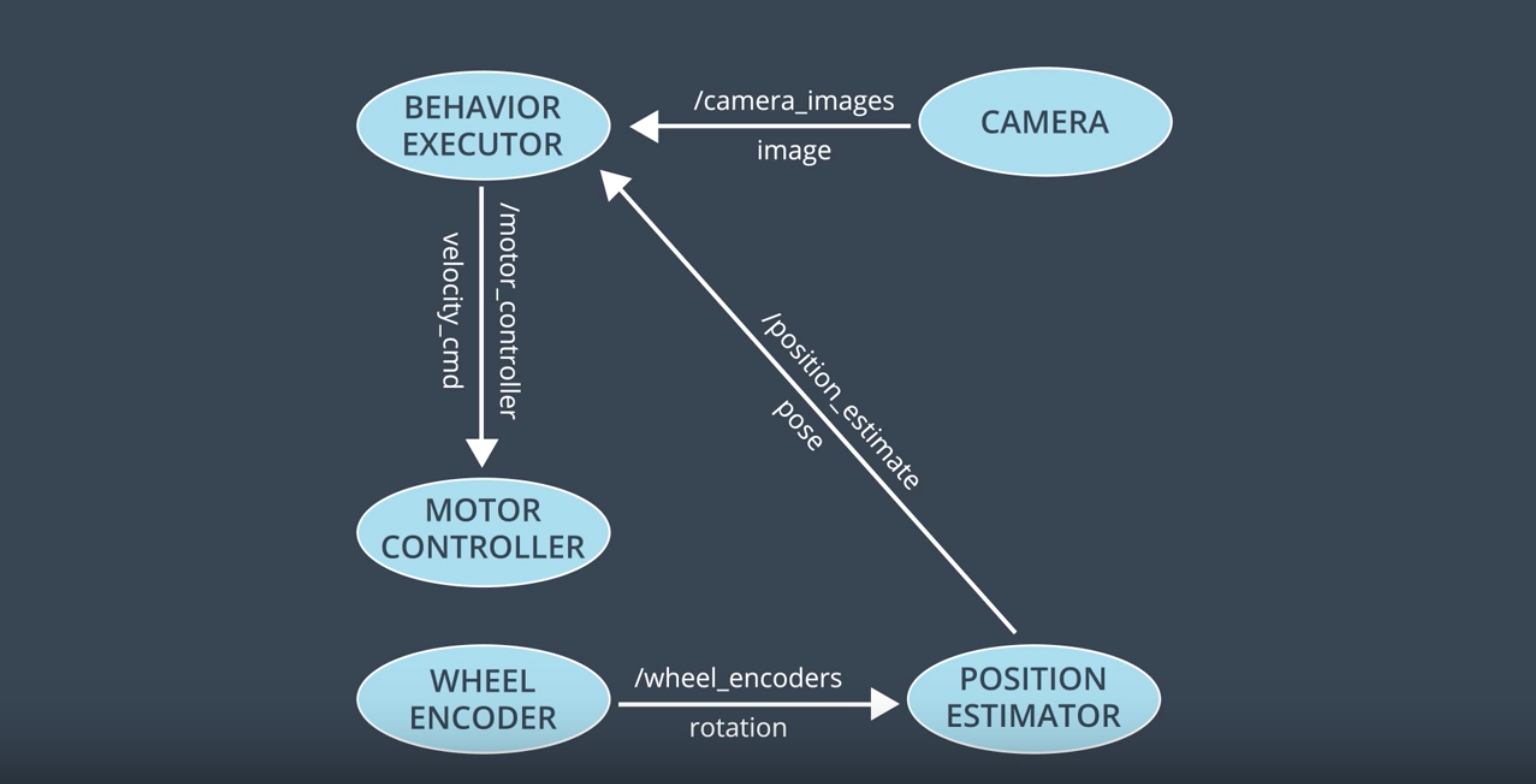

Topics: Nodes can also share messages with one another over "topics". You can think of topics as pipes between nodes through which messages flow.

In order to send a message the node needs to publish to a topic and the receiving node needs to subscribe to that topic.

drawing

Each node can simultaneously publish and subscribe to a variety of topics.

This way of communicating messages is called publisher-subscriber or pub-sub architecture.

Message passing

Each ROS distribution comes with a variety of pre-defined messages.

There are messages for physical quantities:

There are also messages for sensor readings:

Currently, there are over 200 message types in ROS. However, you may still need to define your own message sometimes.

Message types can contains any kind of data and not only limited to text. For example, check out the different message types in the topics example above.

drawing

Services

The "pub-sub" interaction architecture is useful but it's not one size fit all solution. We still need some other architecture for other kinds of interactions. For example, there are times where Request-Response pattern is useful. For these kind of interactions, ROS provides what's called Services.

Like topics, services allows passing message between nodes, however, unlike topics, services have no publishers or subscribers. Instead, nodes interact with services using 1-1 basis using request and response messages.

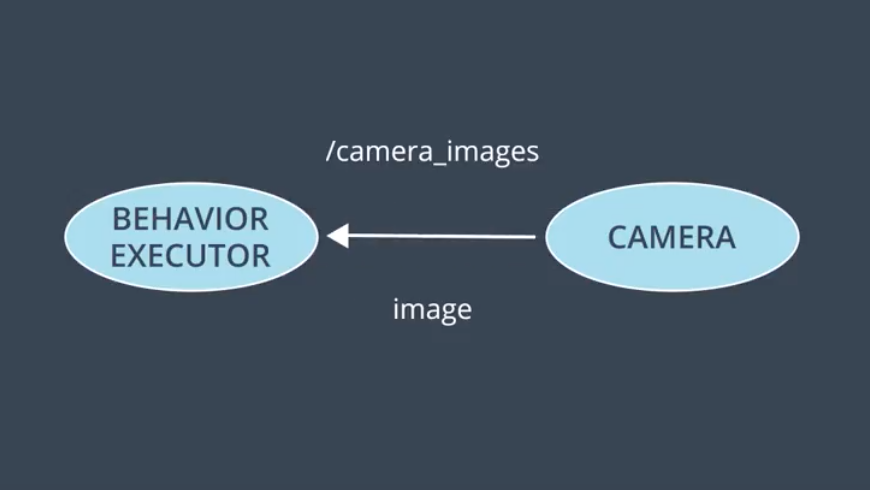

For example, let's say the "behavior executor" node wants to capture an image from the camera. One way is to create a topic "/camera_image", so that every time the camera captures an image, it'll send it over to the "behavior executor".

drawing

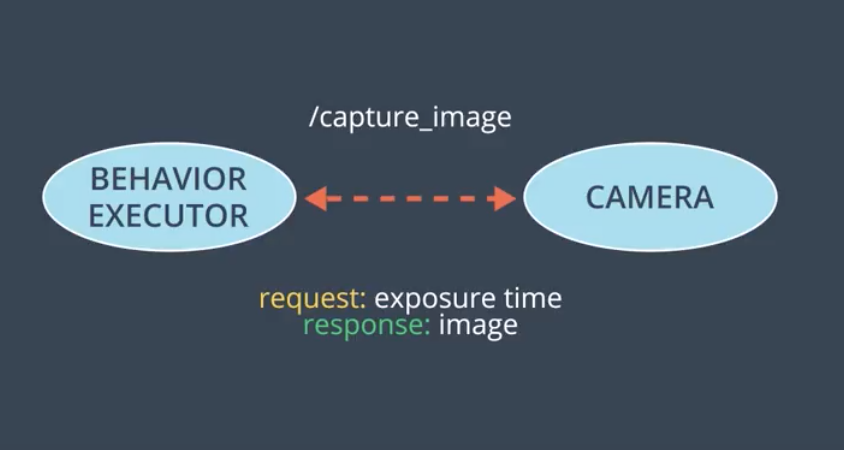

However, "behavior executor" may not want to receive images all the times, only sometimes based on its own request. In such case, we can create a service, call it "/capture_image". Now, everytime "behavior executor" wants an image, it'll send a request (maybe with some parameter like exposure time) and will receive an image from the camera.

drawing

Compute Graph

These diagrams of nodes and their connections are usually referred to as "compute graphs". Visualizing the compute graphs is useful for understanding which nodes exist and how they communicate with one another. ROS can produce the compute graphs.
